Description

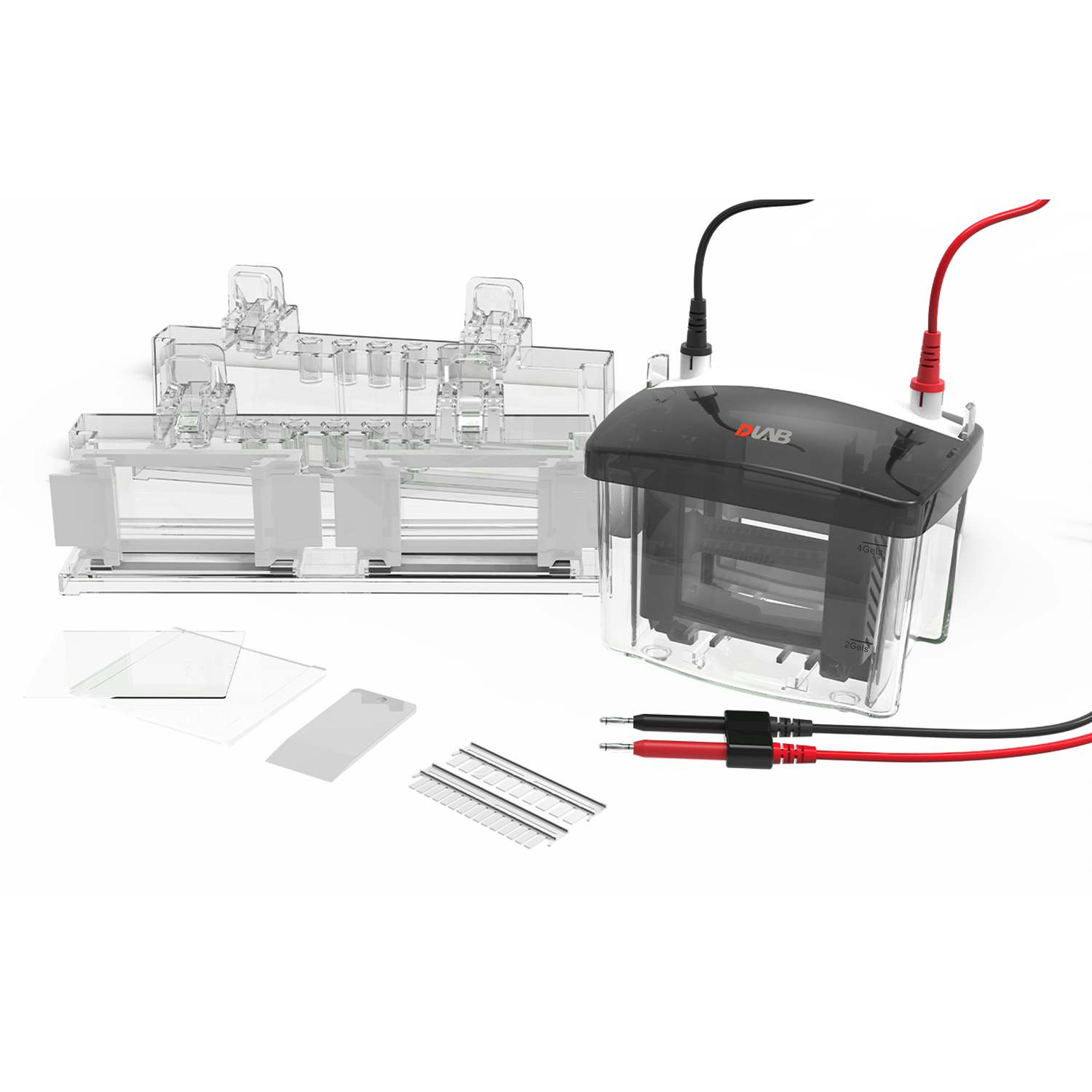

DL-Mini04 Vertical electrophoresis tank, run four 8.3×7.3cm gels at the same time

The edge gasket is permanently fixed on the long glass plate, ensuring precise alignment and preventing glue leakage.

The cam-lock gel frame is easy to operate and precisely aligns the glass plate on any plane.

Special plastic electrophoresis combs do not inhibit gel polymerization. Built-in ridges avoid air contact.

It ensures uniform gel polymerization.

The long glass plate, with a thickened edge gasket, is reinforced to prevent breaking.

The one-piece gel filling rack is arranged in parallel, allowing observation of two gels simultaneously.

The SDS-PAGE electrophoresis time is 45 minutes (200V constant voltage).

High-purity platinum electrode wire ensures the best electrical conductivity.

The parameters and accessories of this product are fully compatible with similar imported products.

This product is compatible with the DL-ZY03 for blot transfer.

Technical Parameters

Number of gels: 1 to 4 pieces

Gel thickness: 0.75 mm, 1 mm, 1.5 mm

Optional tooth numbers for sample comb: 10 or 15 teeth

Glass size: short glass plate (10.1 × 7.3 cm); long glass plate (10.1 × 8.2 cm)

Gel size: hand-cast gel (8.3 × 7.3 cm); precast gel (8.6 × 6.8 cm)

Warranty: 1 Year
