Description

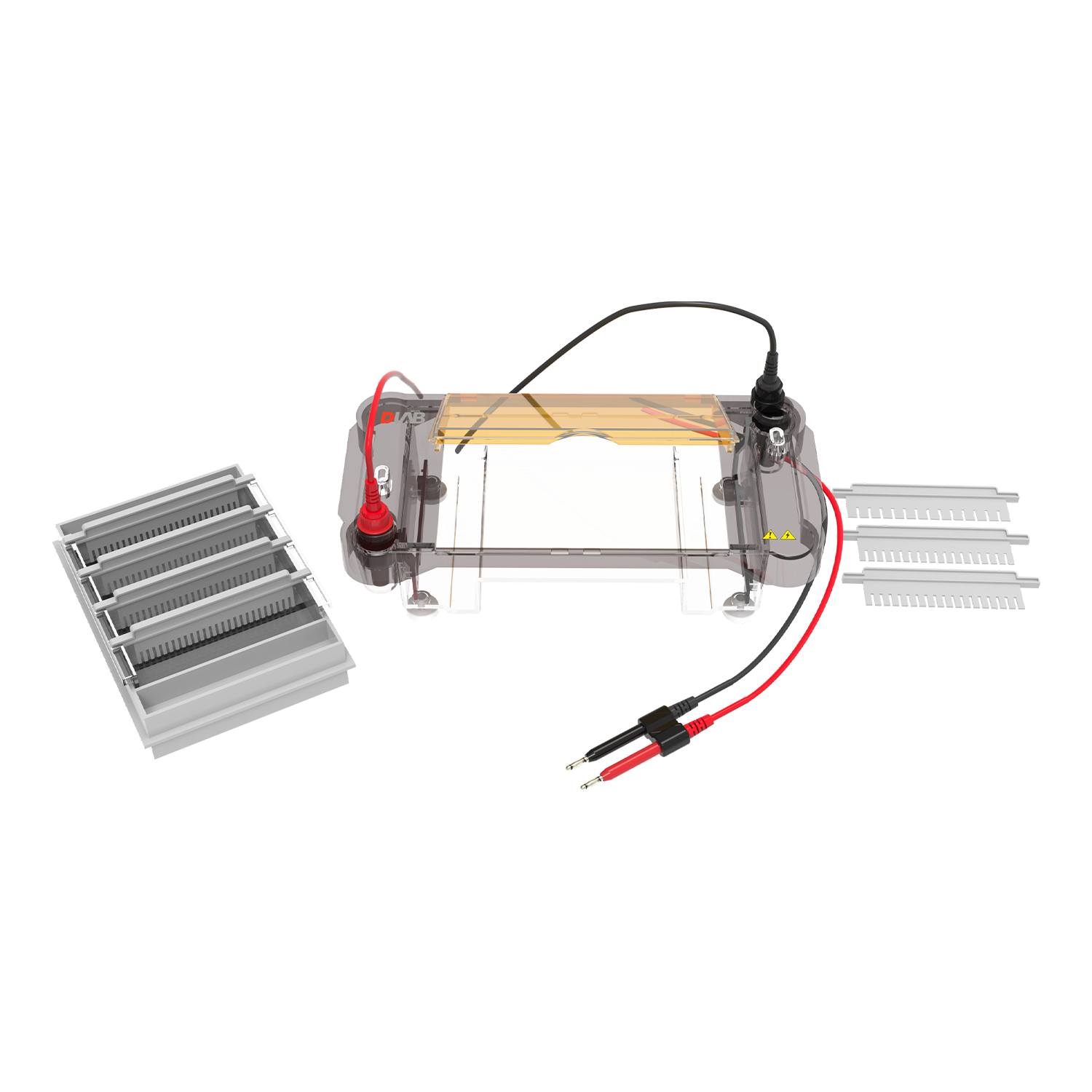

DL-SUB03 Horizontal electrophoresis tank, gel size: 13*15cm、13*20cm

Suitable for nucleic acid electrophoresis, separation and identification of DNA, and determination of its molecular weight.

Polycarbonate high-strength transparent plastic injection molding, ensuring no leakage and impact resistance.

Professional shielding blue light clamshell design; opening the cover effectively dissipates heat.

The bottom level adjustment knob can adjust the level of the electrophoresis tank.

Two different gel sizes to meet the needs of both general and high-throughput electrophoresis.

The front and back design of the gel box saves space.

The background strip at the bottom of the tray is more conducive to observing sample loading.

99.99% high-purity platinum electrode, offering the best conductivity.

Technical Parameters

Gel size (W × L): 130 × 200 mm, 130 × 150 mm

Sample comb: 1.0 mm, 14, 18, 26 wells; 1.5 mm, 18 wells

Buffer volume: 800 mL

Warranty: 1 Year
